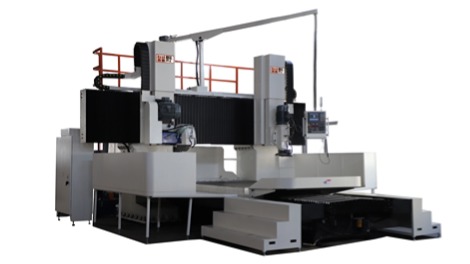

双头龙门磨 | |||||||||
| 模型/内容 Model / Content | PSG-2640GM | PSG-2650GM | PSG-2660GM | PSG-2680GM | PSG-3250GM | PSG-3260GM | PSG-3280GM | PSG-32100GM | PSG-32130GM |
| X轴最大研磨长度 Max. grinding length of axis X | 4100mm | 5100mm | 6100mm | 8100mm | 5100mm | 6100mm | 8100mm | 10100mm | 13100mm |
| 工作台尺寸（长x宽） Worktable size (L*W) | 4100x2100mm | 5100x2100mm | 6100x2100mm | 8100x2100mm | 5100x2600mm | 6100x2600mm | 8100x2600mm | 10100x2600mm | 13100x2600mm |
| Y轴最大移动行程 Max. movement stroke of axis Y | 2600mm | 3250mm | |||||||
| Z轴最大移动行程 Max. movement stroke of axis Z | 1000mm | 1100mm | |||||||
| 磨削高度（卧头为准） Grinding height (subject to horizontal head) | 1000mm（加高1200mm) | 1100mm（加高1500mm) | |||||||
| 两立柱间距（宽x高） Distance between two columns (W*H) | 2650x1300mm（加高1600mm) | 3250x1400mm（加高1800mm) | |||||||
| X轴移动速度 Moving speed of axis X | 3-25 (m/min) | 3-25 (m/min) | |||||||
| Y轴移动速度 Movement speed of axis Y | 0-5 (m/min) | 0-5 (m/min) | |||||||
| Z轴移动速度 Movement speed of axis Z | 0-2 (m/min) | 0-2 (m/min) | |||||||
| 卧头主轴转速 Spindle speed of horizontal head | 0-1000rpm | 0-1000rpm | |||||||
| 立头主轴转速 Spindle speed of vertical head | 0-1650rpm | 0-1650rpm | |||||||
| 立头旋转角度 Rotating angle of vertical head |  ±90° | ±90° | |||||||
| 推真卧头砂转尺寸（外径x宽度x孔径） Max. horizontal head grinding wheel size (OD * Width * Hole Diameter) | 600x100x203 | 600x100x203 | |||||||
| 推真立头砂转尺寸（外径x宽度x孔径） Max. vertical head grinding wheel size (OD * Width * Hole Diameter) | 400x60x127 | 400x60x127 | |||||||
| 工作台导轨形式 Worktable rail form | 双V型导轨 | 双V型导轨 | |||||||
| 工作台T型槽（尺寸x距离x数量） Worktable T-slot (Size * Distance * Qty.) | 24mmx200mmx10 | 24mmx200mmx12 | |||||||
| 工作台最大承重 Max. bearing capacity of worktable | 8000kg | 12000kg | 15000kg | 18000kg | 16000kg | 22000kg | 30000kg | 46000kg | 52000kg |
| 机械重量 Mechanical weight | 40000kg | 40000kg | 44000kg | 55000kg | 49000kg | 54000kg | 68000kg | 98000kg | 130000kg |
