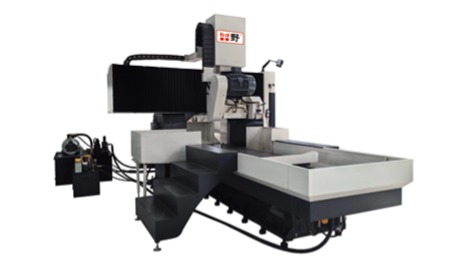

单头龙门磨 | ||||||
| 模型/内容 Model / Content | PSG-1220GM | PSG-1230GM | PSG-1240GM | PSG-1620GM | PSG-1630GM | PSG-1640GM |
| X轴最大研磨长度 Max. grinding length of axis X | 2100mm | 3100mm | 4100mm | 2100mm | 3100mm | 4100mm |
| 工作台尺寸（长x宽） Worktable size (L*W) | 2000x1000mm | 3000x1000mm | 4000x1000mm | 2000x1400mm | 3000x1400mm | 4000x1400mm |
| Y轴最大移动行程 Max. movement stroke of axis Y | 1200mm | 1 600mm | ||||
| Z轴最大移动行程 Max. movement stroke of axis Z | 500mm | 700mm | ||||
| 磨削高度（卧头为准） Grinding height (subject to horizontal head) | 500mm | 700mm | ||||
| 两立柱间距（宽x高） Distance between two columns (W*H) | 1200x700mm | 1600xgoo mm | ||||
| X轴移动速度 Moving speed of axis X | 5-25 (m/min) | 5-25 (m/min) | ||||
| Y轴移动速度 Movement speed of axis Y | 0-5 (m/min) | 0-5 (m/min) | ||||
| Z轴移动速度 Movement speed of axis Z | 0-2 (m/min) | 0-2 (m/min) | ||||
| 卧头主轴转速 Spindle speed of horizontal head | 0-1000rpm | 0-1000rpm | ||||
| 立头主轴转速 Spindle speed of vertical head | / | / | ||||
| 立头旋转角度 Rotating angle of vertical head | / | / | ||||
| 推真卧头砂转尺寸（外径x宽度x孔径） Max. horizontal head grinding wheel size (OD * Width * Hole Diameter) | 500x100x203 | 500x100x203 | ||||
| 推真立头砂转尺寸（外径x宽度x孔径） Max. vertical head grinding wheel size (OD * Width * Hole Diameter) | / | / | ||||
| 工作台导轨形式 Worktable rail form | 双V型导轨 | 双V型导轨 | ||||
| 工作台T型槽（尺寸x距离x数量） Worktable T-slot (Size * Distance * Qty.) | 22mmx170mmx6 | 22mmx170mmx8 | ||||
| 工作台最大承重 Max. bearing capacity of worktable | 3000kg | 3000kg | 4000kg | 3500kg | 5000kg | 6500kg |
| 机械重量 Mechanical weight | 13000kg | 16000kg | 21000kg | 18000kg | 21000kg | 24000kg |
